Jupyter Notebooks

NPF can generate a Jupyter Notebook that contains code to plot graphs from the data of the experiments. This is a great starting point for your final graphs, or to adjust the output to your likings. Instead of playing with the settings of NPF, this allows you to configure your graphs in Python. The resulting notebook is adapted from a Jinja template, depending on the type of graph that has to be generated.

Command line parameters

NPF takes multiple command line parameters to generate the ready-to-tweak Jupyter notebook.

parameter	description
`--notebook <path>` / `--nb <path>`	Generate a Jupyter Notebook at the provided path.
`--update-nb`	Replace only the data if a notebook already exists.
`--force-nb`	Overwrite the file if a notebook already exists.
`--disable-nb-exec`	Prevent the generated notebook from being executed.
`--template-nb <path>`	Use a custom Jupyter Notebook as template.
`--nb-kernel <kernel>`	Specify which kernel should be used to execute the notebook.

`--notebook <path>` / `--nb <path>`

Main argument to generate a notebook by providing the desired output path. A new *.ipynb file will be created but if one exists, the user gets prompted to know if it should be kept or overwritten (answer by typing yes or no). The default action can be configured with --update-nb, or --force-nb.

`--update-nb`

This option defines the behavior when the provided path for the notebook points to an existing notebook. Instead of asking what to do, NPF will try to replace the data in the notebook with the most recent measurements. This is done, by replacing the cells that have the data tag with data = [...] where [...] contains the results. No code will be lost, as long as no changes were made to any cell that has the data tag.

`--force-nb`

This option defines the behavior when the provided path for the notebook points to an existing notebook. This is a way to force NPF to overwrite the existing file with a newly created one. Changes made to the existing file will be lost forever with this operation. Make sure the file doesn’t contain any important changes.

Warning

Any existing notebook at the given path will be overwritten and data may be lost.

`--disable-nb-exec`

By default, the generated notebook gets executed making it ready for analysis by providing cell outputs and displaying graphs. This behavior can be disabled using this parameter. The resulting notebook now has to be executed by the user.

`--template-nb <path>`

A template is used and converted into the final notebook generated by NPF. This template contains code for many types of graphs. With this parameter, you can provide a new template that will be used instead. The default path is located in the NPF project at npf/types/notebook/template.ipynb and this file can be used as starter for a custom one.

When creating a template, you are free to add whatever you like to it. Certain measures are required for a good processing of the template by NPF. The metadata tags of each cell are used to specify the cells that should be kept to plot a certain type of graph. Here is the list of string tags that get recognized by NPF : all, data, line, simple_bar, barh, boxplot, cdf, and heatmap. The all tag will keep the cell whatever the chosen graph type is, and the data tag identifies the cell that should only contain the data in data = [...] format (if the --update-nb option is used, any other content of this cell will be erased).

Jinja templating can be used to add some logic depending on the input data. Variables placed between double curly brackets (e.g., {{ name }}) get replaced by the corresponding values. Here’s a list of the variables that are accessible inside the template:

variable	type	description
name	str	The title of the experiment.
var_names	dict	Dictionary of variables and their pretty name.
x_vars	list[str]	X-axis variables.
x_names	list[str]	X-axis variables’ pretty names.
y_vars	list[str]	Y-axis variables.
y_names	list[str]	Y-axis variables’ pretty names.
data	list[dict]	Experiment measurements in a Pandas dataframe format.
dir_name	str	Output directory of the notebook (e.g., npf/result_notebooks).
file_path	str	Path of the file with no extension (e.g., npf/result_notebooks/iperf2_nb).
file_name	str	Name of the file with no extension (e.g., iperf2_nb).

`--nb-kernel <kernel>`

By default, the produced notebook gets executed (can be changed with --disable-nb-exec). The kernel used for the execution is by default, set to python3, but with this option you can specify the one that should be used.

How to generate a notebook

When running NPF, set the --notebook <path> parameter where <path> is the path for the *.ipynb file. The created notebook contains code to plot simple graphs that can be adapted manually and also the data of the experiment. This code depends on the graph type which can be forced using --config graph_type=<type> where <type> can be line, simple_bar, barh (horizontal bar), boxplot, cdf, or heatmap.

The following Jupyter Notebook can be obtained by running the example iperf test of NPF with the following command:

npf --test tests/tcp/01-iperf.npf --notebook iperf-nb.ipynb --config graph_type=bar

Once the experiment data has been collected by NPF, the notebook will be created and saved at the provided file path.

Example notebook of IPerf 2 Throughput Experiment

data = [{"build": "2.0.9", "test_index": 0, "PARALLEL": 1, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 15461882265.6, "run_index": 0}, {"build": "2.0.9", "test_index": 0, "PARALLEL": 1, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 15461882265.6, "run_index": 1}, {"build": "2.0.9", "test_index": 0, "PARALLEL": 1, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 15247133900.8, "run_index": 2}, {"build": "2.0.9", "test_index": 0, "PARALLEL": 1, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 15139759718.4, "run_index": 3}, {"build": "2.0.9", "test_index": 0, "PARALLEL": 1, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 16106127360.0, "run_index": 4}, {"build": "2.0.9", "test_index": 1, "PARALLEL": 2, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 27165668147.2, "run_index": 0}, {"build": "2.0.9", "test_index": 1, "PARALLEL": 2, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 24588687769.6, "run_index": 1}, {"build": "2.0.9", "test_index": 1, "PARALLEL": 2, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 24803436134.4, "run_index": 2}, {"build": "2.0.9", "test_index": 1, "PARALLEL": 2, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 25232932864.0, "run_index": 3}, {"build": "2.0.9", "test_index": 1, "PARALLEL": 2, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 26628797235.2, "run_index": 4}, {"build": "2.0.9", "test_index": 2, "PARALLEL": 3, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 32641751449.6, "run_index": 0}, {"build": "2.0.9", "test_index": 2, "PARALLEL": 3, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 33393370726.4, "run_index": 1}, {"build": "2.0.9", "test_index": 2, "PARALLEL": 3, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 32963873996.8, "run_index": 2}, {"build": "2.0.9", "test_index": 2, "PARALLEL": 3, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 33071248179.2, "run_index": 3}, {"build": "2.0.9", "test_index": 2, "PARALLEL": 3, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 33178622361.6, "run_index": 4}, {"build": "2.0.9", "test_index": 3, "PARALLEL": 4, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 41124311859.2, "run_index": 0}, {"build": "2.0.9", "test_index": 3, "PARALLEL": 4, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 39513699123.2, "run_index": 1}, {"build": "2.0.9", "test_index": 3, "PARALLEL": 4, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 42949672960.0, "run_index": 2}, {"build": "2.0.9", "test_index": 3, "PARALLEL": 4, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 43916040601.6, "run_index": 3}, {"build": "2.0.9", "test_index": 3, "PARALLEL": 4, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 45097156608.0, "run_index": 4}, {"build": "2.0.9", "test_index": 4, "PARALLEL": 5, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 46922517708.8, "run_index": 0}, {"build": "2.0.9", "test_index": 4, "PARALLEL": 5, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 49606872268.8, "run_index": 1}, {"build": "2.0.9", "test_index": 4, "PARALLEL": 5, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 50573239910.4, "run_index": 2}, {"build": "2.0.9", "test_index": 4, "PARALLEL": 5, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 52398601011.2, "run_index": 3}, {"build": "2.0.9", "test_index": 4, "PARALLEL": 5, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 56693568307.2, "run_index": 4}, {"build": "2.0.9", "test_index": 5, "PARALLEL": 6, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 77953656422.4, "run_index": 0}, {"build": "2.0.9", "test_index": 5, "PARALLEL": 6, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 78275778969.6, "run_index": 1}, {"build": "2.0.9", "test_index": 5, "PARALLEL": 6, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 79349520793.6, "run_index": 2}, {"build": "2.0.9", "test_index": 5, "PARALLEL": 6, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 81604378624.0, "run_index": 3}, {"build": "2.0.9", "test_index": 5, "PARALLEL": 6, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 81926501171.2, "run_index": 4}, {"build": "2.0.9", "test_index": 6, "PARALLEL": 7, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 127775277056.0, "run_index": 0}, {"build": "2.0.9", "test_index": 6, "PARALLEL": 7, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 120259084288.0, "run_index": 1}, {"build": "2.0.9", "test_index": 6, "PARALLEL": 7, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 132070244352.0, "run_index": 2}, {"build": "2.0.9", "test_index": 6, "PARALLEL": 7, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 129922760704.0, "run_index": 3}, {"build": "2.0.9", "test_index": 6, "PARALLEL": 7, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 126701535232.0, "run_index": 4}, {"build": "2.0.9", "test_index": 7, "PARALLEL": 8, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 141733920768.0, "run_index": 0}, {"build": "2.0.9", "test_index": 7, "PARALLEL": 8, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 136365211648.0, "run_index": 1}, {"build": "2.0.9", "test_index": 7, "PARALLEL": 8, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 141733920768.0, "run_index": 2}, {"build": "2.0.9", "test_index": 7, "PARALLEL": 8, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 151397597184.0, "run_index": 3}, {"build": "2.0.9", "test_index": 7, "PARALLEL": 8, "WINDOW": 64, "TIME": 2, "THROUGHPUT": 147102629888.0, "run_index": 4}, {"build": "2.0.9", "test_index": 8, "PARALLEL": 1, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 61418032332.8, "run_index": 0}, {"build": "2.0.9", "test_index": 8, "PARALLEL": 1, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 54760833024.0, "run_index": 1}, {"build": "2.0.9", "test_index": 8, "PARALLEL": 1, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 61418032332.8, "run_index": 2}, {"build": "2.0.9", "test_index": 8, "PARALLEL": 1, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 57552561766.4, "run_index": 3}, {"build": "2.0.9", "test_index": 8, "PARALLEL": 1, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 43271795507.2, "run_index": 4}, {"build": "2.0.9", "test_index": 9, "PARALLEL": 2, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 67430986547.2, "run_index": 0}, {"build": "2.0.9", "test_index": 9, "PARALLEL": 2, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 60129542144.0, "run_index": 1}, {"build": "2.0.9", "test_index": 9, "PARALLEL": 2, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 65283502899.2, "run_index": 2}, {"build": "2.0.9", "test_index": 9, "PARALLEL": 2, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 61632780697.6, "run_index": 3}, {"build": "2.0.9", "test_index": 9, "PARALLEL": 2, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 64854006169.6, "run_index": 4}, {"build": "2.0.9", "test_index": 10, "PARALLEL": 3, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 86221468467.2, "run_index": 0}, {"build": "2.0.9", "test_index": 10, "PARALLEL": 3, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 73443940761.6, "run_index": 1}, {"build": "2.0.9", "test_index": 10, "PARALLEL": 3, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 83000242995.2, "run_index": 2}, {"build": "2.0.9", "test_index": 10, "PARALLEL": 3, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 73121818214.4, "run_index": 3}, {"build": "2.0.9", "test_index": 10, "PARALLEL": 3, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 67001489817.6, "run_index": 4}, {"build": "2.0.9", "test_index": 11, "PARALLEL": 4, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 101039105638.4, "run_index": 0}, {"build": "2.0.9", "test_index": 11, "PARALLEL": 4, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 114890375168.0, "run_index": 1}, {"build": "2.0.9", "test_index": 11, "PARALLEL": 4, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 123480309760.0, "run_index": 2}, {"build": "2.0.9", "test_index": 11, "PARALLEL": 4, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 108447924224.0, "run_index": 3}, {"build": "2.0.9", "test_index": 11, "PARALLEL": 4, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 101039105638.4, "run_index": 4}, {"build": "2.0.9", "test_index": 12, "PARALLEL": 5, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 127775277056.0, "run_index": 0}, {"build": "2.0.9", "test_index": 12, "PARALLEL": 5, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 109521666048.0, "run_index": 1}, {"build": "2.0.9", "test_index": 12, "PARALLEL": 5, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 135291469824.0, "run_index": 2}, {"build": "2.0.9", "test_index": 12, "PARALLEL": 5, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 139586437120.0, "run_index": 3}, {"build": "2.0.9", "test_index": 12, "PARALLEL": 5, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 120259084288.0, "run_index": 4}, {"build": "2.0.9", "test_index": 13, "PARALLEL": 6, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 144955146240.0, "run_index": 0}, {"build": "2.0.9", "test_index": 13, "PARALLEL": 6, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 139586437120.0, "run_index": 1}, {"build": "2.0.9", "test_index": 13, "PARALLEL": 6, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 126701535232.0, "run_index": 2}, {"build": "2.0.9", "test_index": 13, "PARALLEL": 6, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 140660178944.0, "run_index": 3}, {"build": "2.0.9", "test_index": 13, "PARALLEL": 6, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 144955146240.0, "run_index": 4}, {"build": "2.0.9", "test_index": 14, "PARALLEL": 7, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 123480309760.0, "run_index": 0}, {"build": "2.0.9", "test_index": 14, "PARALLEL": 7, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 147102629888.0, "run_index": 1}, {"build": "2.0.9", "test_index": 14, "PARALLEL": 7, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 144955146240.0, "run_index": 2}, {"build": "2.0.9", "test_index": 14, "PARALLEL": 7, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 111669149696.0, "run_index": 3}, {"build": "2.0.9", "test_index": 14, "PARALLEL": 7, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 138512695296.0, "run_index": 4}, {"build": "2.0.9", "test_index": 15, "PARALLEL": 8, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 115964116992.0, "run_index": 0}, {"build": "2.0.9", "test_index": 15, "PARALLEL": 8, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 67430986547.2, "run_index": 1}, {"build": "2.0.9", "test_index": 15, "PARALLEL": 8, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 127775277056.0, "run_index": 2}, {"build": "2.0.9", "test_index": 15, "PARALLEL": 8, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 115964116992.0, "run_index": 3}, {"build": "2.0.9", "test_index": 15, "PARALLEL": 8, "WINDOW": 512, "TIME": 2, "THROUGHPUT": 114890375168.0, "run_index": 4}]

import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

df = pd.DataFrame(data)

var_names = {'PARALLEL': 'Number of parallel connections', 'WINDOW': 'Window size (kB)', 'THROUGHPUT': 'Throughput'}
x_vars = ['PARALLEL', 'WINDOW']
y_vars = ['THROUGHPUT']

display(df)

---------------------------------------------------------------------------
ModuleNotFoundError                       Traceback (most recent call last)
Cell In[2], line 2
      1 import pandas as pd
----> 2 import matplotlib.pyplot as plt
      3 import seaborn as sns
      5 df = pd.DataFrame(data)

ModuleNotFoundError: No module named 'matplotlib'

def get_name(var):
    return var_names[var] if var in var_names else var

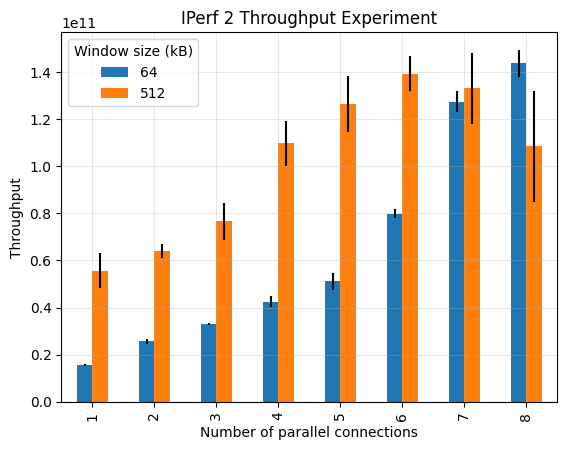

# BAR

for y_var in y_vars:
    values = df.groupby(['PARALLEL', 'WINDOW'])[y_var]
    values.mean().unstack().plot.bar(yerr=values.std().unstack())

    plt.xlabel('Number of parallel connections')
    plt.ylabel(get_name(y_var))
    plt.legend(title='Window size (kB)')
    plt.title('IPerf 2 Throughput Experiment')
    plt.grid(alpha=0.3)

    # plt.savefig(f'iperf-nb_{y_var}.pdf')
    plt.show()

_images/84d63355f77400e48dc83bfb77d04dd038c9b63ae93a575def51e6cd88e5c431.png
